Mã phụ tùng:
5078383
Giá:
Liên hệ
Giá EXW:
0.00 EUR
Xuất xứ:
Italy
Giao hàng dự kiến:
2 - 4 tuần

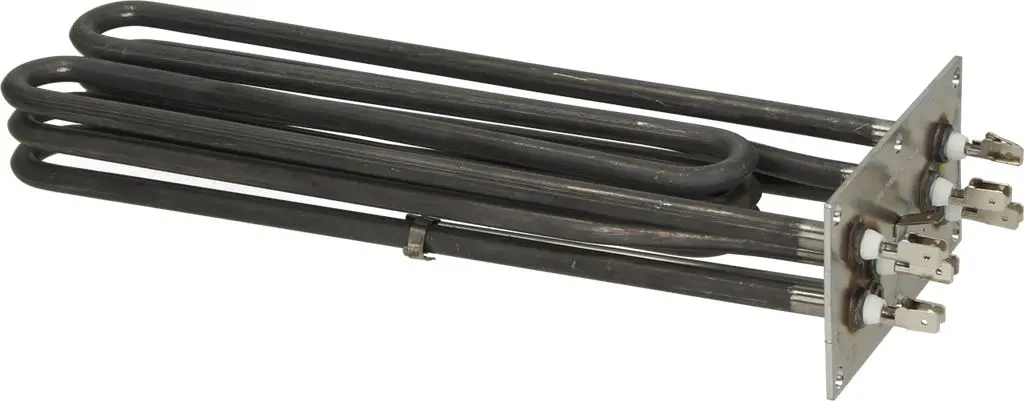

| Manufacturer | Part number |
|---|---|
| GEV | 417197 |
| Power | 9000 W |
| Voltage | 230 V |
| Length | 280 mm |
| Tube diameter | 8,5 mm |
| Heating circuits | 3 |
| Hole distance | 48 mm |
| Height | 35 mm |
| Width | 78 mm |
| Flange length | 105 mm |
| Flange width | 60 mm |
| Hole diameter | 6 mm |
| Diameter thermostat sleeves | 3 mm |
| Number of thermostat sleeves | 1 |
| Length thermostat sleeves | 115 mm |
| Application | immersion heater |
| Weight | 0,910 kg |
FITS MODELS
| Manufacturer | Device type | Model |
| FAGOR | Electric oven steam | AE-061 (201209-), AE-061-W (201209-), AE-061W (201402-), AE-101 (201209-), AE-101-W (201209-), AE-101W (201402-), AE-102 (201209-), AE-102-W (201209-), AE-102W (201402-), AE-201 (201209-), AE-202 (201209-), APE-061 (201209-), APE-061-W (201209-), APE-061W (201402-), APE-101 (201209-), APE-101-W (201209-), APE-101W (201402-), APE-102 (201209-), APE-102-W (201209-), APE-102W (201402-), APE-201 (201209-), APE-202 (201209-), HEM-20-21 (200701-), HEP-10-21 (200804-), HEP-20-21 (200804-), VE-102 (200909-), VE-201 (200910-), VE-202 (200910-), VPE-102 (200909-), VPE-201 (200910-), VPE-202 (200910-) |
